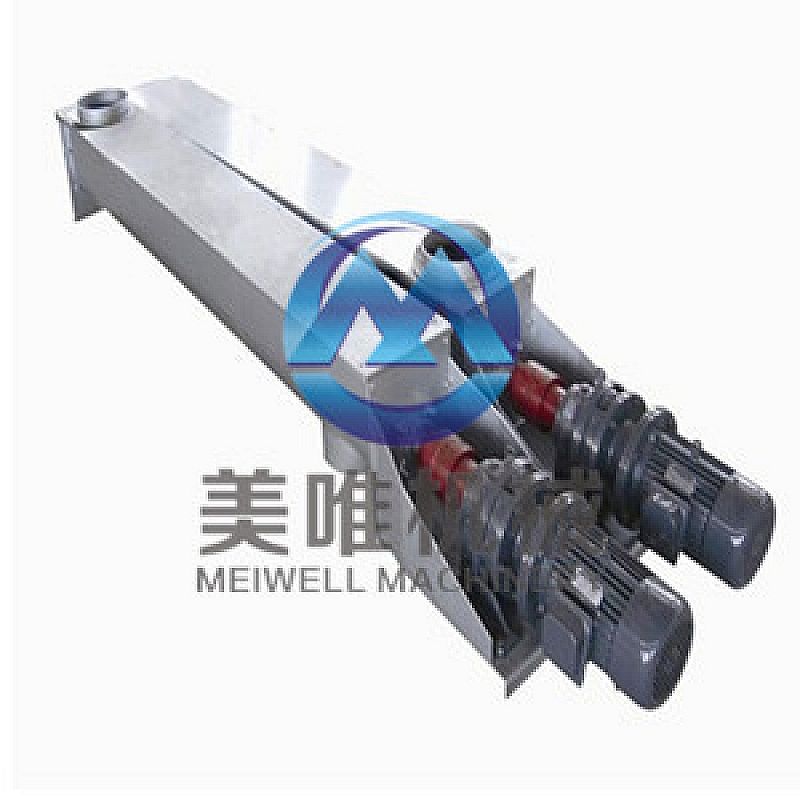

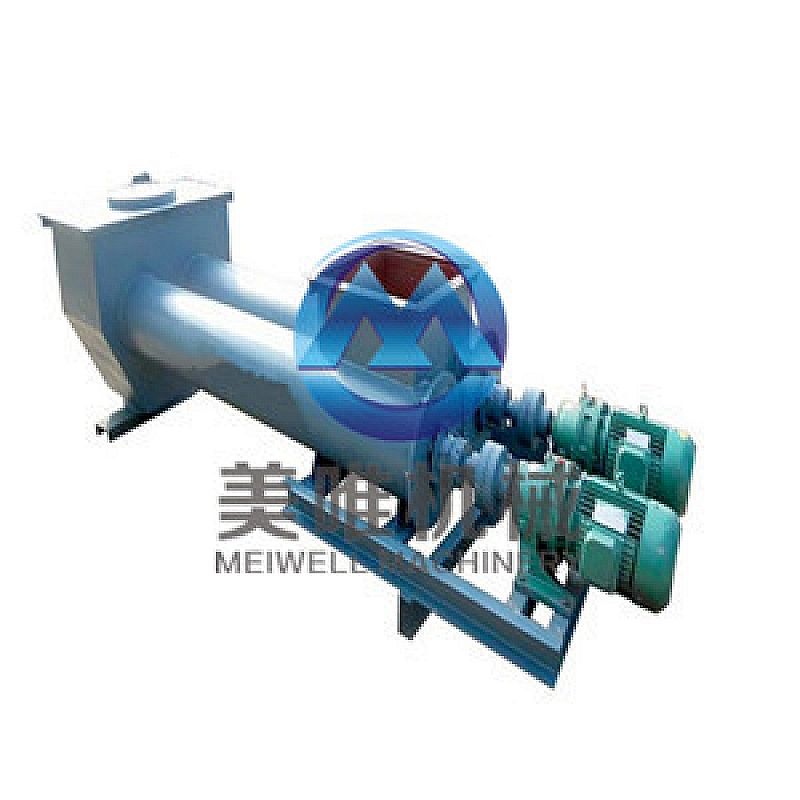

LS screw conveyor
| Item No.: | IFA-MRQ403732 |
Introduction:

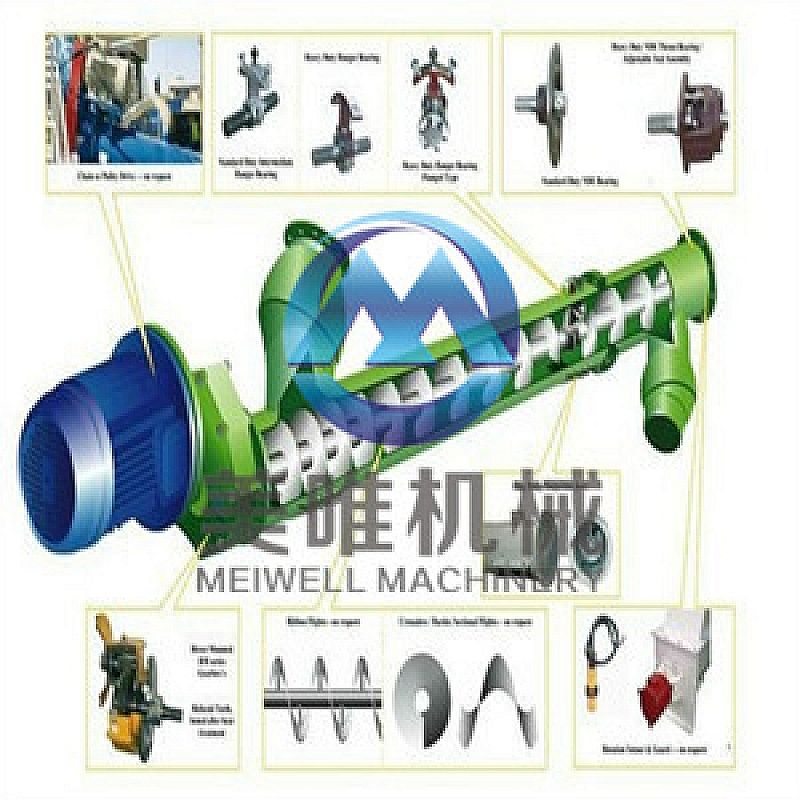

This machine is special used to conveying powder,bulk material,and small size particle with good flowing ability.It consists of motor,motor base,U-type casing,spiral shaft,spline,suspension bearing,feed and discharge point.
Adopt motor as its power source,the spiral shaft is connected with motor directly to avoid energy losing.Once the motor runs,it generates large running torque,then transmit it to spiral shaft.The material which filled in casing will move along the rotation of spiral shaft,and then discharged in outlet point smoothly.
Application:
The machine may be used for branches such as chemical industry,building material,machinery,coal,metallurgy,light industry,grain,medicine,traffic,water and electricity broadly. Being used to transport all kinds of form of powder and small piece material. Be inadvisable to transport the big viscidity packing material or large piece of material easy to go bad. Thi enables the installation slightly tilted,the maximum tilt angle:less than of equal 20 °,the working environment temperature:-20°C~50°C temperature materials transportation:less than 200°C.
Feature:
(1) Adopt high-quality carbon steel or stainless steel as its casing,which thickness difined by customer.
(2) Each section connect with spline and suspension bearing,the bearing with reliable leak tightness,good lubrication.
(3) This machine can convey material smoothly.

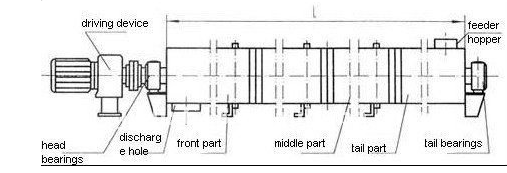

1. Driving device
2. Head bearings
3. Discharge hole
4. Front part
5. Middle part
6. Tail part
7. Feeder hooper
8. Tail bearings
Technical Parameter:
|
Model |
Diameter (mm) |
The distance of blades(mm) |
Speed (rpm) |
Capacity (t/m3) |
Speed (rpm) |
Capacity (t/m3) |
Speed (rpm) |
Capacity (t/m3) |
Speed (rpm) |
Capacity (t/m3) |
|
D |
S |
n |
φ=0.33 |
n |
φ=0.33 |
n |
φ=0.33 |
n |
φ=0.33 |
|
|
LS100 |
100 |
100 |
140 |
2.2 |
112 |
1.7 |
90 |
1.4 |
71 |
1.1 |
|
LS125 |
125 |
125 |
125 |
3.8 |
100 |
3.0 |
80 |
2.4 |
63 |
1.9 |
|
LS160 |
160 |
160 |
112 |
7.1 |
90 |
5.7 |
71 |
4.5 |
56 |
3.6 |
|
LS200 |
200 |
200 |
100 |
12.4 |
80 |
9.9 |
63 |
7.8 |
50 |
6.2 |
|
LS250 |
250 |
250 |
90 |
21.8 |
71 |
17.2 |
56 |
13.6 |
45 |
10.9 |
|
LS315 |
315 |
315 |
80 |
38.8 |
63 |
30.5 |
50 |
24.2 |
40 |
13.4 |
|
LS400 |
400 |
355 |
71 |
62.5 |
56 |
49.3 |
45 |
38.6 |
36 |
31.7 |
|
LS500 |
500 |
400 |
63 |
97.7 |
50 |
77.6 |
40 |
62.0 |
32 |
49.6 |
|
LS630 |
630 |
450 |
50 |
138.5 |
40 |
110.8 |
32 |
88.6 |
25 |
69.3 |
|
LS800 |
800 |
500 |
40 |
198.5 |
32 |
158.8 |
25 |
124.1 |
20 |
99.3 |
