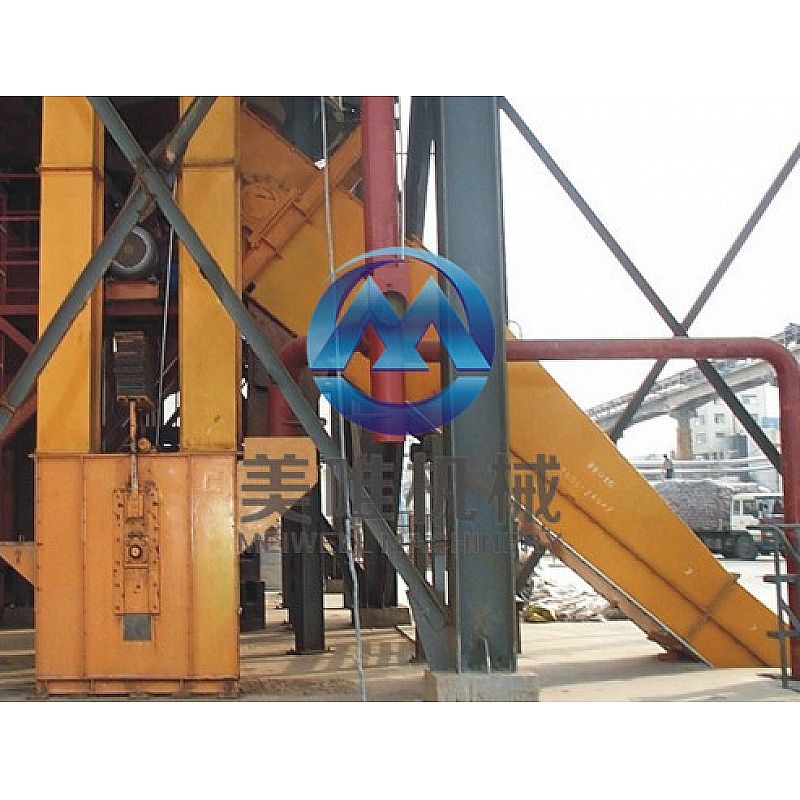

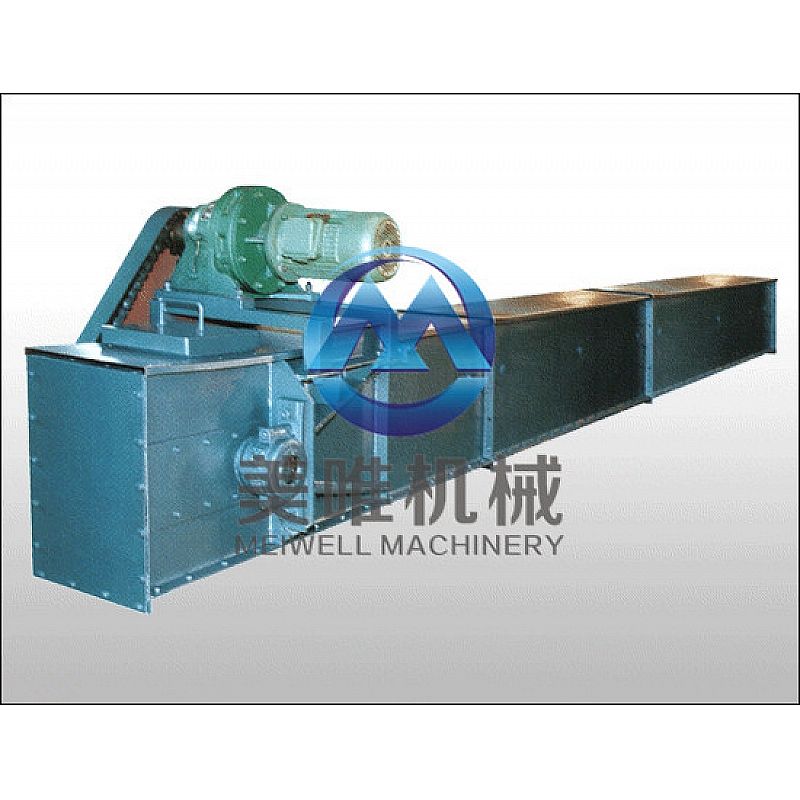

MCF air-tight buried scraper conveyor
| Item No.: | IFA-BKJ916175 |
Product description:
MCF air-tight type series buried scraper conveyor there are five kinds of specifications, the machine slot width is 400 mm; The largest throughput 50 t/h; The biggest hoisting height 30 m;
Application：

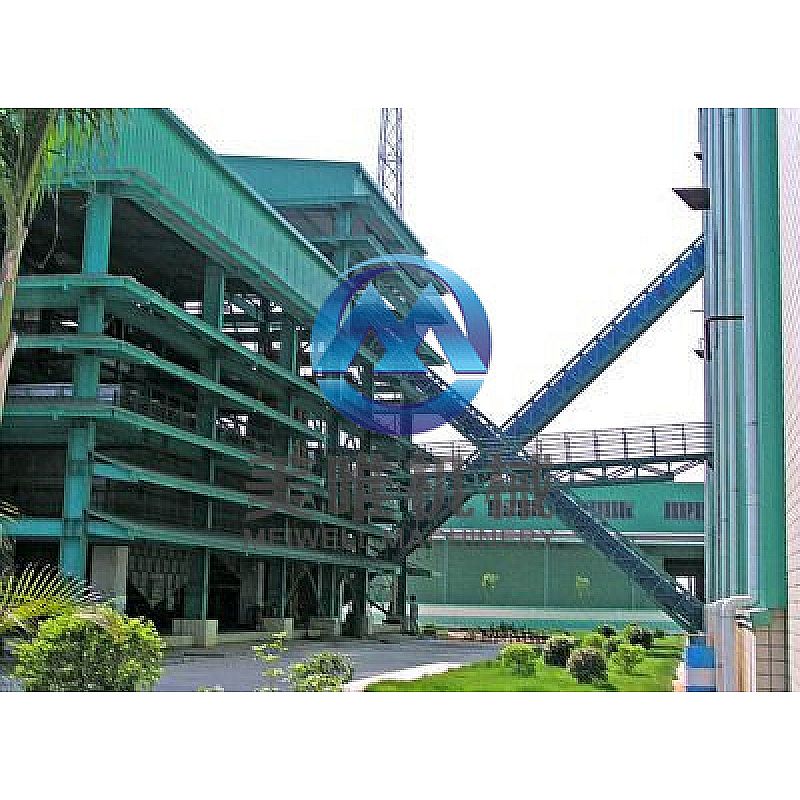

Mainly used for conveying various strong volatile solvent, strong permeability, or containing poisonous small granular, small flakes and powder material, such as oil plant oils containing solvent leaching workshop of cake, etc.
Structural characteristics ：
◆Scraping board is a plate of key components, material is 16 Mn, improve wear resistance, high strength;
◆Chain conveyor chain GB8350-87 was used in large tensile strength, abrasion resistance, long service life;
◆Scraper has the steel bracket and guide rail, can prevent the scraper is hard objects stuck distortion; Reduce friction slot machine and scraper, scraper life is more than one year.
◆Sprocket using ZG40Cr and machined surface after quenching.
◆Slot machine outside the tensioning device (the screw material is stainless steel), prevent the chain chain, sliding off.
Technical parameter table：
|
Type |
MCF16 |
MCF20 |
MCF25 |
MCF32 |
MCF40 |
|
|
Machine slot width(mm) |
160 |
200 |
250 |
320 |
400 |
|
|
Chain speed(m/s) |
0.16-0.25 |
0.16-0.25 |
0.16-0.32 |
0.2-0.40 |
0.2-0.45 |
|
|
Throughput (t/h) |
3-6 |
5-8 |
8-15 |
15-30 |
20-50 |
|
|
Max.transmission distance(m) |
30 |
30 |
30 |
30 |
30 |
|
|
Attention ：Material calculated on soybean meal in the table，Bulk density Y=0.55t/m3.Please modify according to the specific material selection. |
||||||
