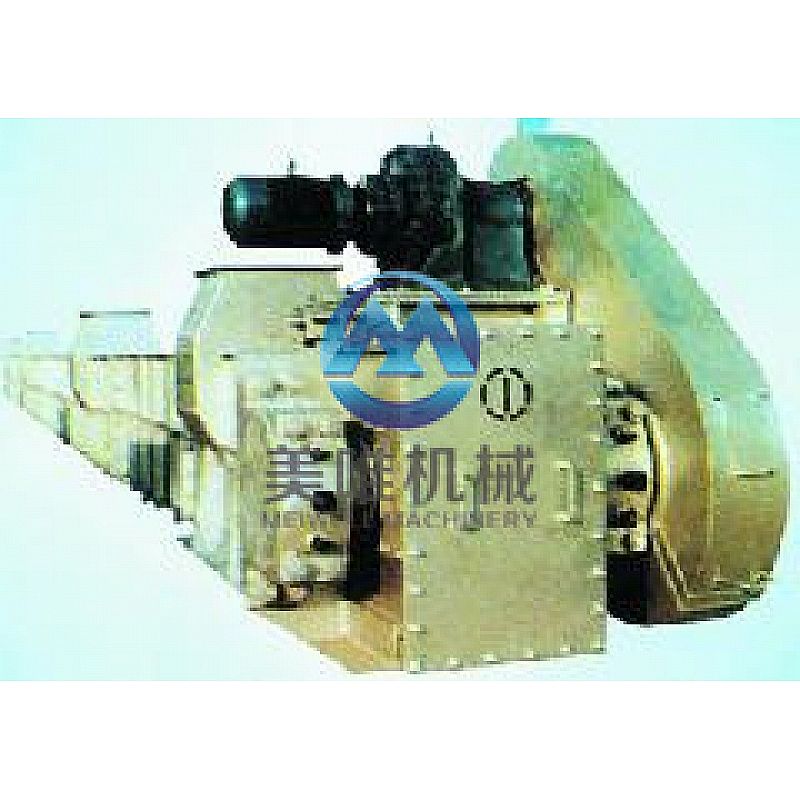

MZF air-tight buried scraper conveyor
| Item No.: | IFA-BHY745702 |
Overview:
Series of products are widely used in metallurgy, building materials, electric power, chemical, cement, coal, mining, port, wharf, grain and oil, food, feed and other industries and sectors.
Major development trends:
1、Big volume. Foreign advanced coal country have been developed to hours of transport capacity of 1500 t. 80 t (80 s) (90 s) of the scraper conveyor.
2、Long distance transport. In order to reduce the loss of coal pillar mining stage, increase the working face length, the length of the scraper conveyor has reached more than 335 meters.
3、High power motor. Motor power of 525 kw has developed to the single speed motor, two-speed motor kw 500/250.
4、Life is long. Due to the use of large diameter round link chain, increase the strength of scraper chain, prolong the service life of scraper conveyor, the machine after coal is as high as 6 million tons.

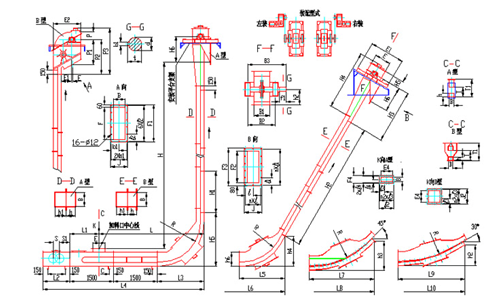

The body structure:
Conveyor technical parameter:
|
Model no. |
MS16 |
MS20 |
MS25 |
MS32 |
MS40 |
MS50 |
MS60 |
MS80 |
MZF16 |
MZF20 |
MZF25 |
MZF32 |
MZF40 |
MZ16 |
MZ20 |
MZ25 |
MZ32 |
|
|
Machine slot width mm |
160 |
200 |
250 |
320 |
400 |
500 |
600 |
800 |
160 |
200 |
250 |
320 |
400 |
160 |
200 |
250 |
320 |
|
|
Chain pitch mm |
100 |
125 |
160 |
200 |
200 |
200 |
250 |
250 |
100 |
125 |
160 |
200 |
200 |
100 |
125 |
160 |
160 |
|
|
Chain type |
Forging chain |
|||||||||||||||||
|
Chain material |
45# steel 45Mn2 |
|||||||||||||||||
|
Chain speed |
0.16-0.32m/sec |
|||||||||||||||||
|
Throughput t/h |
5-12 |
8-18 |
11-28 |
25-52 |
40-65 |
50-75 |
60-95 |
100-120 |
5-12 |
8-18 |
11-28 |
25-52 |
40-65 |
5-13 |
8-20 |
15-30 |
25-40 |
|
