NE plate chain bucket elevator
| Item No.: | IFA-EMS012416 |

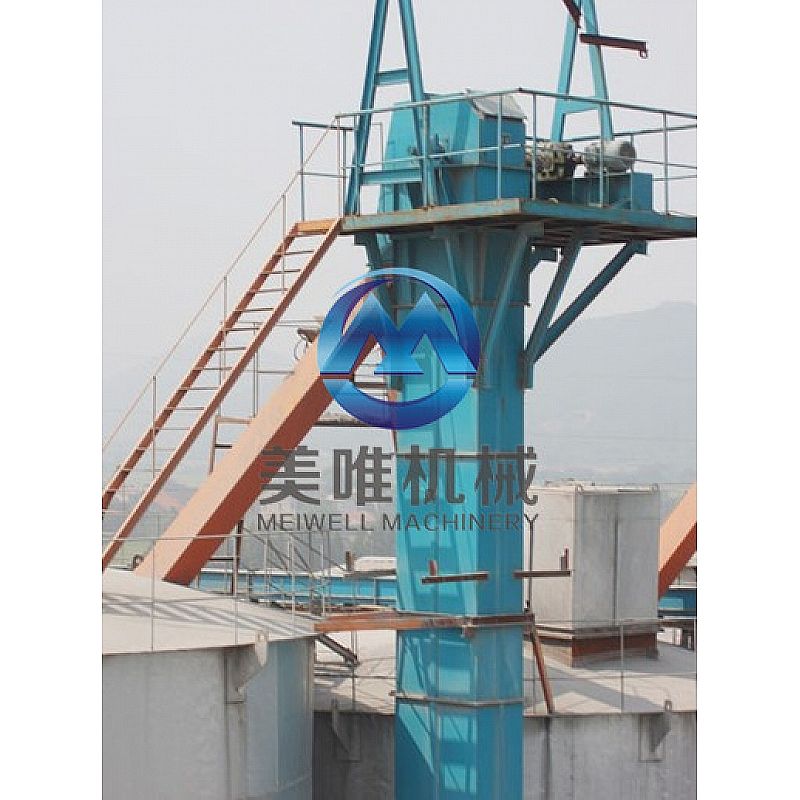

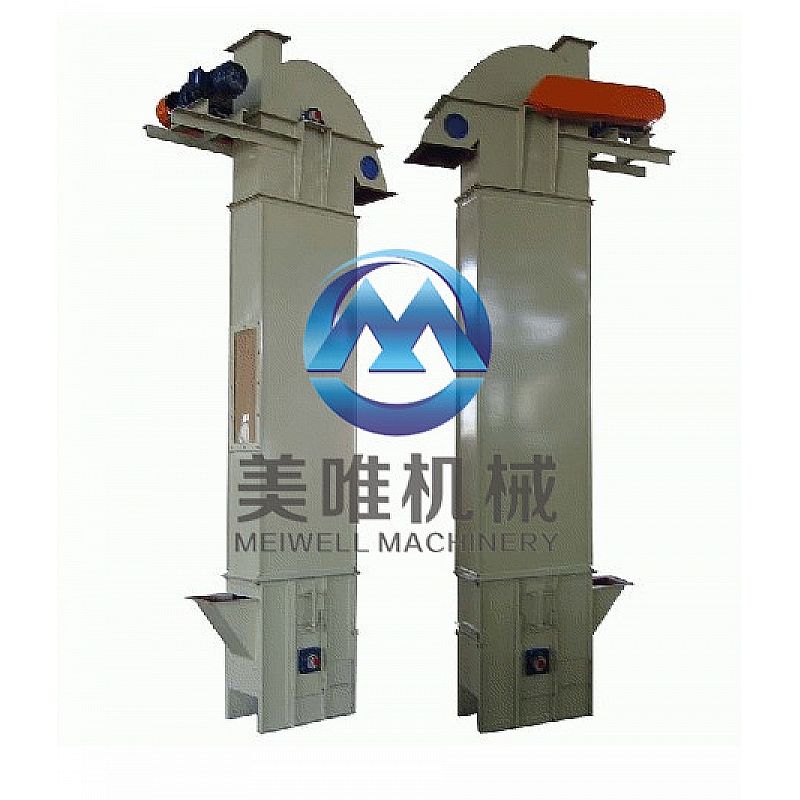

The NE plate chain bucket elevator series are a kind of advance vertical elevtors domestically, which are developed by our company by introducing up-to-date technology, They are characterized by large conveying capacity, small driving power, high lifting height and wide lifting range. It is widely sued to lift materials in bulk, e.g. ore, coal, cement chamotte, foodstuff and so on.
Applications:
Iron ore & gold powder
Coal powder
Aggregates
Sand & gravel
Hard rock, limestone, ore, oil and salt, etc
"NE Series" Features:
1. Introduced advanced technology, Large capacity of vertical transport, Max height: 40m
2. Carbon Steel and Stainless Steel Construction
3. Contoured Boot Bottom
4. Chain or Belt Type Elevators
5. Inching Drives
6. Platforms, Jib Booms, and Access Ladder
7. Single Box Type Leg Casing
Technical Parameters:
|
Techinical Data |
|||||||||
|
Model |
Transfer amount |
Bucket |
Max. block material(mm) |
||||||
|
Bucket Volume |
Bucket |
Bucket |
Percentage(%) |
||||||
|
10 |
25 |
50 |
75 |
100 |
|||||
|
NE15 |
15 |
2.5 |
203.2 |
29.8 |
65 |
50 |
40 |
30 |
25 |
|
NE30 |
32 |
7.8 |
304.8 |
30.1 |
90 |
75 |
58 |
47 |
40 |
|
NE50 |
60 |
14.7 |
304.8 |
30.1 |
90 |
75 |
58 |
47 |
40 |
|
NE100 |
110 |
35 |
400 |
31 |
130 |
105 |
80 |
65 |
55 |
|
NE150 |
170 |
52.5 |
400 |
31 |
130 |
105 |
80 |
65 |
55 |
|
NE200 |
210 |
84.6 |
500 |
30 |
170 |
135 |
100 |
85 |
70 |
|
NE300 |
320 |
127.5 |
500 |
30 |
170 |
135 |
100 |
85 |
70 |
|
NE400 |
380 |
182.5 |
600 |
30 |
205 |
165 |
125 |
105 |
90 |
|
NE500 |
470 |
260.9 |
700 |
30 |
240 |
190 |
145 |
120 |
100 |
|
NE600 |
600 |
300.2 |
700 |
30 |
240 |
190 |
145 |
120 |
100 |
|
NE800 |
800 |
501.8 |
800 |
30 |
275 |
220 |
165 |
135 |
110 |
