Introduction:

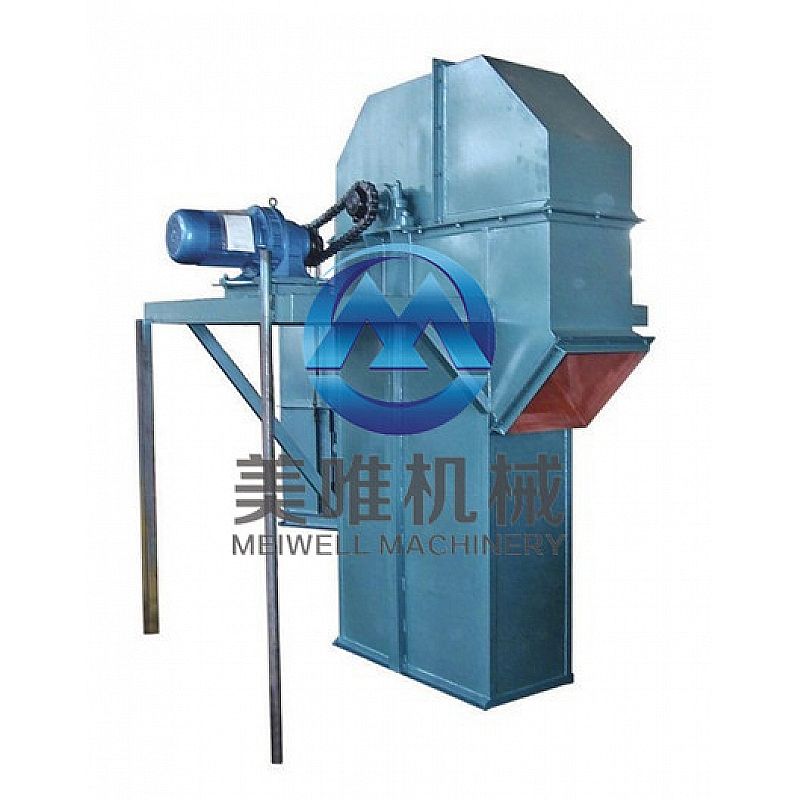

NSE type high-speed plate-chain elevator is a new type vertical elevator equipment developed by our company. It has the features of wide elevation range, large conveying capacity, low drive power, long service life, high elevation height, reliable running, low operating cost, convenient operation and maintenance etc. it is suitable for elevating common powdery and small-grain materials, such as cement, pulverized coal, finer broken mineral stones etc. The temperature of material to be conveyed can reach 200°C. During the elevation almost no backfeed and digging takes place, and the power consumption is 70%of ring chain elevator. Under normal operating conditions, the service life of conveying chain exceeds three years.

1. The series plate chain bucket elevator machine is similar domestic hoist similar structure size delivered the largest hoist.

2. Drive with lower power.To take into the feeder, induction type discharge, high capacity hopper intensive layout. The material hoist, almost no return material filler phenomenon, thus invalidating less power than the ring chain hoist, save power 30%.

3.The series of plate chain bucket elevator machine without hopper filler, stable operation, and uses the high strength chain plate chain. Rated throughput rate, maximum lifting height over 40 meters.

                                                                Main technical parameters:
