Introduction:

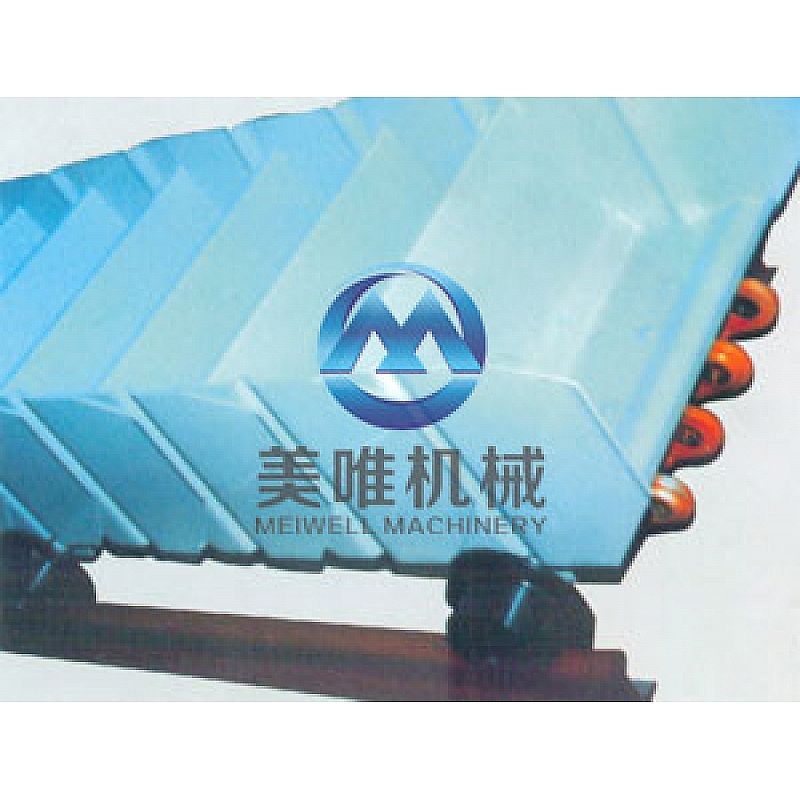

SCD trough clinker conveyor is independently R&D according to the advanced technology from abroad. It is suitable for horizontally or tiltable conveying various powder and massive bulk material, such as cement, clinker, slag, iron ore, limestone, coke, etc. Its temperature resistance and reliability are better than the chain plate conveyor, belt conveyor and vibrating conveyor, etc., and it can save 20% to 50% of the power than the currently widely used chain plate conveyor.

Application:

SCD trough clinker conveyor can be promoted to use in the building, metallurgy, coal, chemical, electric power industry and other departments of the national economy.

Features:

1. horizontal and slope conveying dry granular materials.

2. slant angle ≤60°

3. conveying distance can reach 150m, the biggest hoisting height can reach 60m.

4. conveying ability 75m3 / h - 240m3 / h.

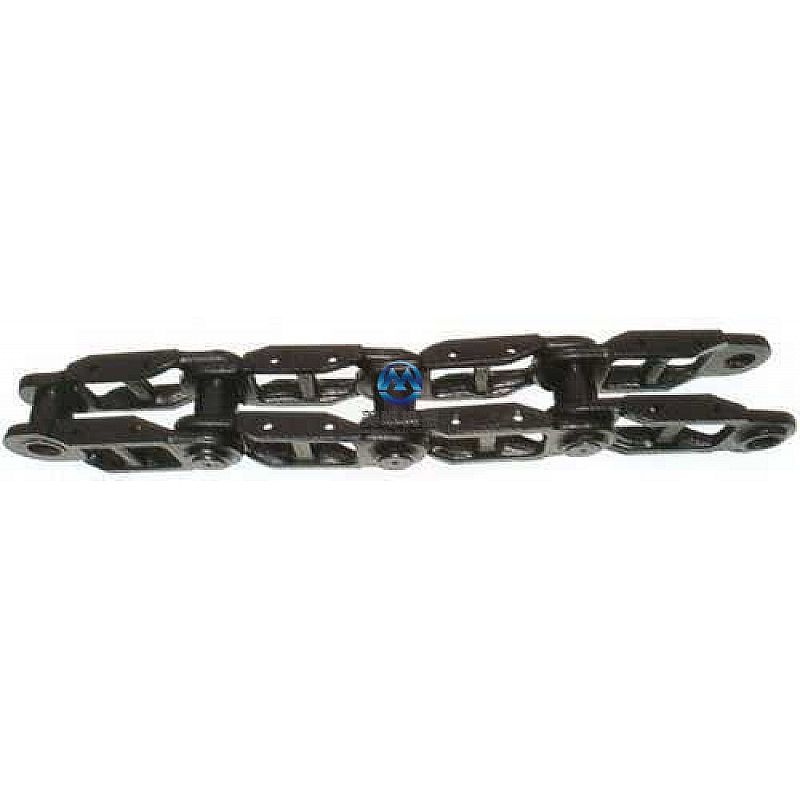

5. traction chain by forging molding chain plate, high intensity, long service life.

6. bearing and traction separate structure, make conveyor stress reasonable, smooth operation.

7. temperature of the material ≤250 C.

8. suitable materials 50mm, largest particle size 200mm.

                                                    Technical Parameter

              (1)  Trough conveyor rated throughput（m³/h）（slant angle≦25︒）
